How one developer ran an end-to-end legacy migration with agentic AI

The reconstruction was not a single prompt or a one-pass code summary. I used several analysis passes, with each pass answering a different class of questions.

The basic rule was simple: if an important conclusion could not be traced back to observable evidence in the source code or platform specifications, it was not ready to become part of the migration baseline.

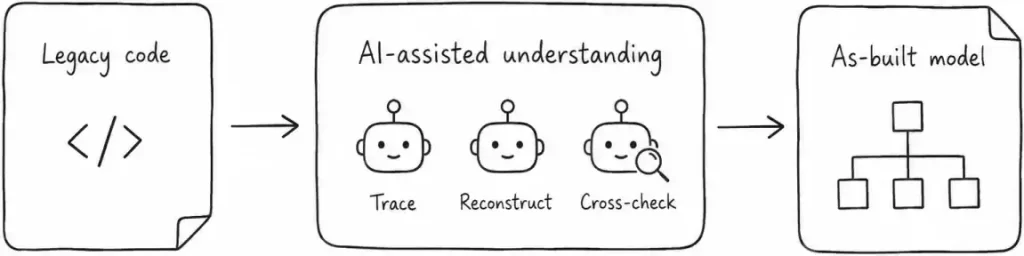

1. Map the system before explaining it

I first identified the major modules, entry points, data structures, external interfaces, device integrations, and persistent artifacts.

At this stage, I was not trying to infer requirements. I wanted to understand where the important responsibilities appeared to live.

2. Reconstruct runtime behavior

Next, I followed call paths and shared state to understand how the application behaved at runtime.

That meant answering questions such as:

• How does a transaction start?
• Which state transitions are possible?
• When is host authorization invoked?
• What happens after an interruption or restart?
• What data survives between sessions?
• Where are retries, reversals, or offline flows triggered?

This moved the analysis from code structure to observable system behavior.

3. Identify the boundaries that must survive migration

I then focused on external and platform-facing contracts, including host protocols, device APIs, storage formats, configuration, and payment-related responsibilities.

This distinction mattered because an internal implementation could often be redesigned, while an external wire or data contract might require exact compatibility.

4. Reconstruct features and requirements

Once the behavior was understood, I organized the findings into features, functional and nonfunctional requirements, user flows, data structures, and architecture decisions.

These were not standalone summaries. Important findings remained connected to the code and specification evidence that supported them.

5. Challenge the first interpretation

The first explanation was never automatically treated as the correct one.

Additional passes looked for missing modules, unexplained consumers of flags and structures, contradictions, unresolved references, and behavior that appeared in code but had not made it into the reconstructed model.

For example, an opaque configuration flag might initially look like a local setting. Before accepting that interpretation, I would trace where it was assigned, where it was read, which modules depended on it, which transaction states it affected, and whether the related behavior appeared in the platform specifications.

Only then could the conclusion become part of the as-built model.

Two design choices made that possible: separating current-system facts from future-system decisions, and retrieving knowledge index first instead of loading the entire wiki.

1. Separate as-built truth from target design

I split the wiki into two sides.

The legacy side described the application as it actually existed:

• architecture;
• data model;
• modules;
• APIs;
• behaviors;
• functional and nonfunctional requirements;
• features;
• legacy architecture decisions.

The target side described the application we were designing:

• target architecture;
• requirements;
• user stories;
• user flows;
• features;
• wireframes;
• architecture decision records;
• roadmap and execution plan.

This separation prevented a subtle but dangerous problem: silently replacing a fact about the old application with a decision about how the new application should work.

A legacy document answered:

What does the current system actually do?

A target document answered:

What should the new system do, and why?

Links connected the two when a target decision depended on legacy evidence.

2. Use wiki-management to keep the knowledge model consistent

wiki-management defined how documents were created and maintained.

It controlled things such as:

• document types and templates;
• naming and identifiers;
• metadata;
• side-specific tags;
• directory indexes;
• links between related artifacts;
• rules for creating, editing, moving, and deleting documents.

This mattered because an AI-generated knowledge base can become inconsistent very quickly if every agent invents its own document format, naming scheme, and linking conventions.

The skill turned documentation work into a repeatable operation rather than an open-ended writing task.

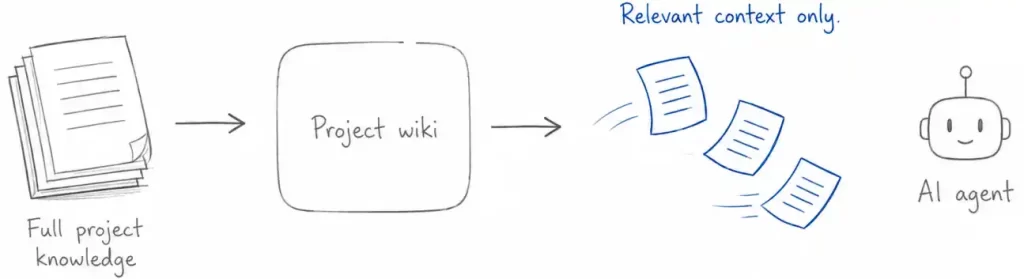

3. Use wiki-reader to retrieve context index first

Once the wiki grew, reading everything became counterproductive.

wiki-reader first determined what kind of information the current task required:

• legacy knowledge;
• target design;
• both sides;
• task or execution information.

It then opened the relevant index, selected the smallest useful set of documents, and followed additional links only when necessary.

The retrieval pattern was:

Question → Relevant side → Index → Minimum document set → Follow links if needed

This reduced context usage, but that was only one benefit.

It also reduced irrelevant information. An implementation agent working on one feature did not need dozens of unrelated requirements competing for attention.

4. Use wiki-validator for structural integrity

The third skill checked whether the wiki itself remained structurally sound.

It could detect problems such as:

• missing metadata;
• malformed or duplicate IDs;
• incorrect directory placement;
• wrong side tags;
• missing index entries;
• broken links;
• orphan documents;
• naming violations.

Its responsibility was deliberately limited.

wiki-validator could tell me that a document was structurally wrong. It could not tell me that an engineering conclusion inside the document was technically true.

That still required evidence, additional analysis, and human review.

5. Keep external documentation searchable the same way

I applied the same principle to the vendor documentation.

Separate reader skills handled the target platform documentation and the payment SDK documentation. Instead of loading those corpora wholesale, the agent first found the relevant section and retrieved only the documents needed for the current question.

This gave the project several distinct knowledge sources without forcing every task to carry all of them in context.

I did not use a dedicated “migration analyst” agent. Instead, I used general-purpose Claude Code agents, meaning agents without a permanently assigned role, and specialized them through prompts and skills, reusable instruction sets that defined how to perform a particular type of work. For each capability, the agent compared the behavior that still had to exist, the legacy implementation that provided it, the capabilities and constraints of the new platform, and any external contract the new implementation was not free to change.

The project wiki contained the reconstructed VOS3 system, the project’s existing C++ payment-terminal application built for the Verifone VOS/ADK platform. wiki-reader retrieved the relevant VOS3 features, behaviors, APIs, architecture decisions, and data-model documents without loading the entire knowledge base. For the target platform, VAOS, Verifone Android OS, the agent used docs-vaos for platform architecture, security, privileges, signing, connectivity, and hardware access, and docs-psdk-sdi for payment-specific functions. PSDK is Verifone’s payment software development kit, while SDI, Secure Data Interface, is the controlled interface through which VAOS applications access payment-sensitive functions.

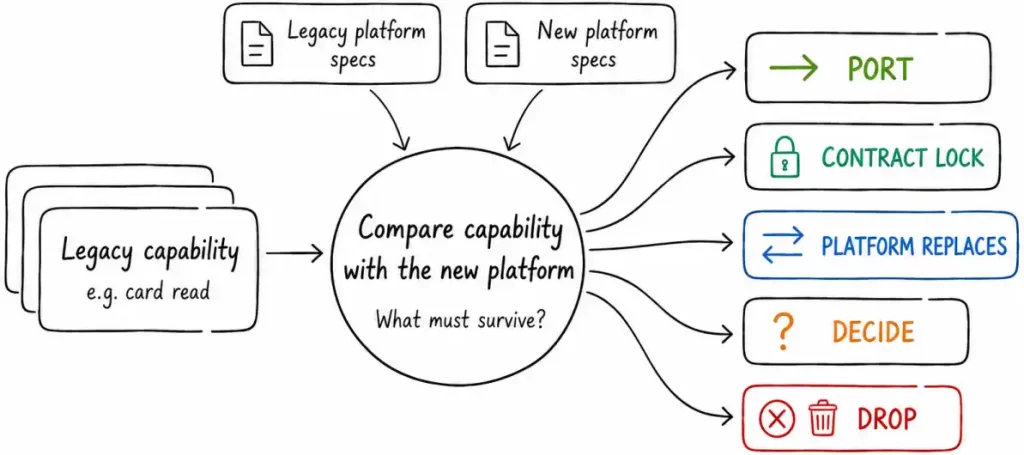

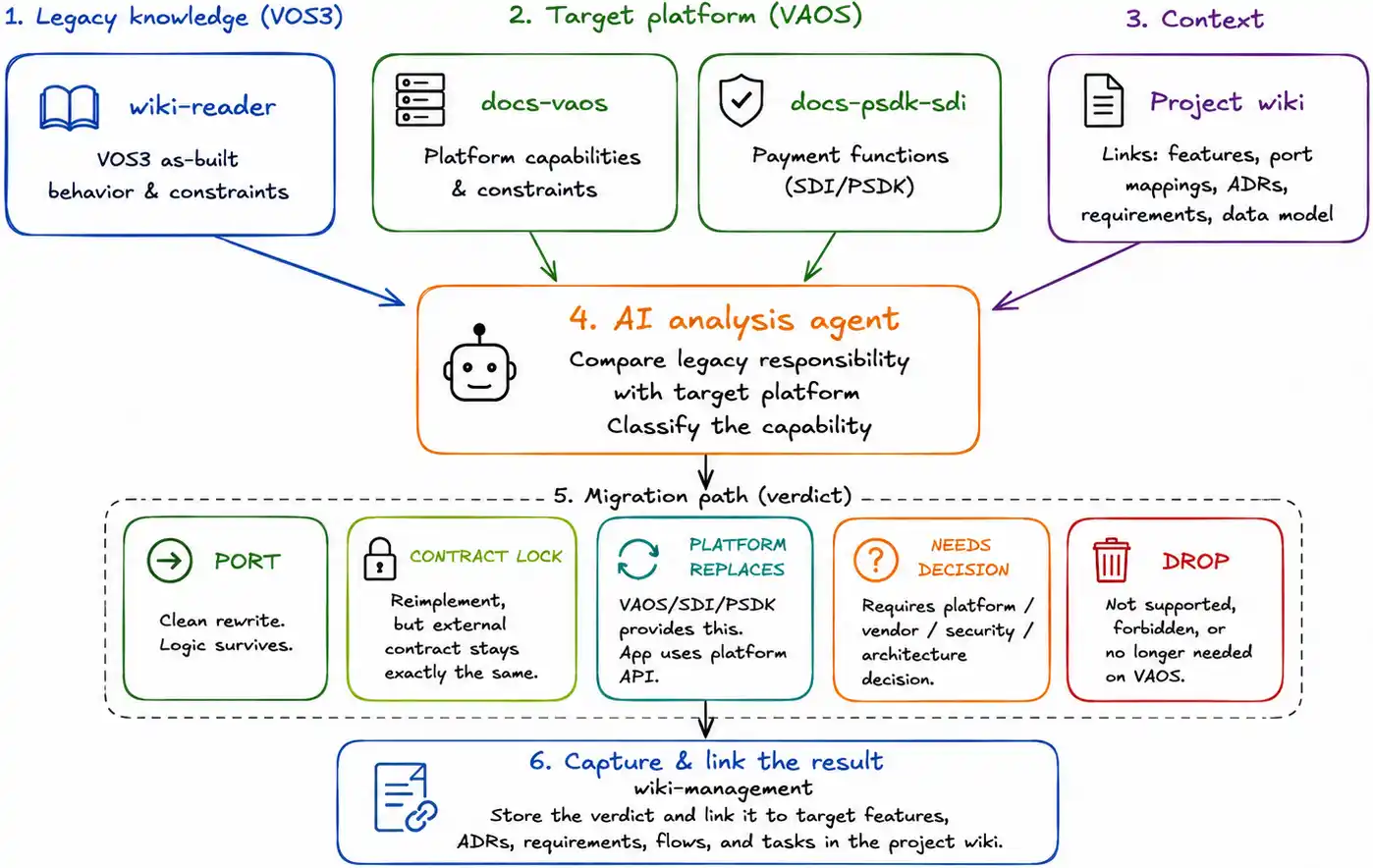

1. Start with a capability, not a file or class

The analysis agent first retrieved a legacy capability through wiki-reader and followed its links to related behaviors, APIs, requirements, and decisions. An API, application programming interface, is the defined interface through which one software component communicates with another.

This mattered because a C++ module is only an implementation boundary. For example, transaction processing might span several modules, global structures, dispatch tables, and platform APIs. The useful migration question was not whether those files should survive, but whether the transaction lifecycle, the sequence of states a payment transaction passes through, still had to exist.

In this case, the behavior survived, while the implementation could be redesigned as a Kotlin domain layer and state machine.

2. Ask which responsibilities the new platform already owns

The agent then used docs-vaos and docs-psdk-sdi to determine whether a responsibility should still belong to the application. This was especially important for card reading, PIN entry, payment cryptography, and EMV, the chip-card processing standard used for payment transactions.

On VAOS, these payment-sensitive operations moved behind the terminal’s secure processor and platform interfaces. Instead of rewriting the corresponding VOS3 implementation, the agent classified them as:

Replaced by platform

For example, EMV processing moved to SDI/PSDK rather than being implemented by the Android application itself.

3. Separate implementation freedom from contract freedom

The next question was whether the implementation could change without changing what another system saw.

The host protocol was one example. The Android client could be redesigned internally, but its wire contract, the exact message format exchanged with another system, still had to remain compatible.

The same applied to some legacy data formats and POS/ECR integrations. POS means point of sale, while ECR means electronic cash register. In this project, POS/ECR referred to external checkout systems communicating with the payment terminal.

These capabilities received:

Ports with contract lock

A contract lock meant that the internal implementation could change, but the externally visible protocol or data format could not.

4. Let the agent return “Needs decision”

Not every comparison produced an implementation answer. Some capabilities depended on unresolved choices around privileged applications, signing, key management, secure-processor access, or security architecture.

In those cases, the correct output was:

Needs decision

The agent was expected to expose the missing decision rather than invent a plausible answer. This same principle later became part of the implementation workflow: when a task depended on an unresolved vendor, security, architecture, or business choice, the AI process stopped instead of guessing.

5. Identify behavior that should disappear

The same comparison exposed mechanisms that no longer belonged in the new system. Modem and dial transport, direct device-node access, and root or system-partition access were either unavailable or forbidden on VAOS.

Those capabilities were classified as:

Dropped

The objective was not to preserve as much legacy implementation as possible. It was to preserve only the behavior that still had a reason to exist.

6. Write the verdict back into the shared knowledge model

The migration verdicts did not remain inside an AI conversation. They were written back into the project wiki and linked to the target-system documentation.

For example, a new feature could link back to its VOS3 source feature and then forward to an ADR, Architecture Decision Record, a short document explaining an important technical decision and why it was made. It could also link to requirements, user flows, related features, and implementation tasks.

wiki-management maintained those documents and links, while wiki-reader made them available to later agents. wiki-validator checked structural integrity such as IDs, locations, indexes, and links. It did not decide whether a migration verdict was technically correct. That still depended on source evidence, comparison across the VOS3 and VAOS knowledge bases, and human review.

One implementation detail is important here. I originally wanted separate custom agent types for Engineer, Code Reviewer, and QA Engineer. The client environment did not support them, so all three roles used general-purpose agents. Their specialization came from the combination of the model, the skill they were instructed to use, their prompt, and the context they received.

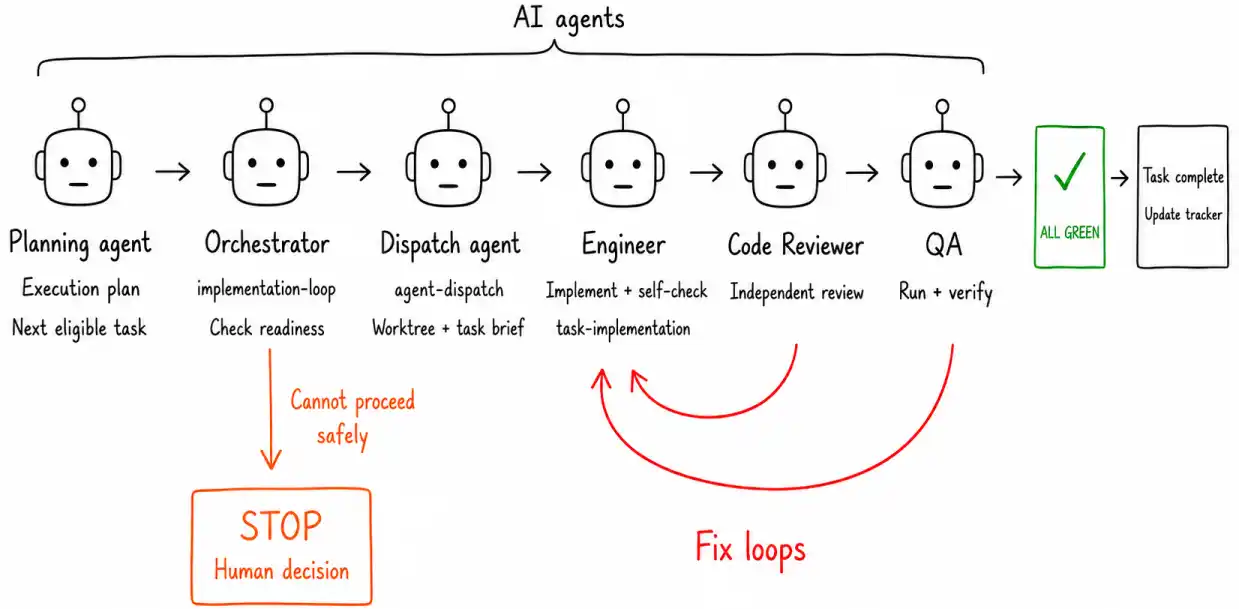

1. Orchestrator: select and prepare the task

implementation-loop first checked whether the task was actually ready: its dependencies had to be satisfied, it could not be blocked or deferred, and the execution plan had to define the appropriate model.

It then invoked agent-dispatch, which prepared an isolated Git worktree, a separate working copy of the repository where the agent could change code without touching the main working tree.

agent-dispatch also created .task-brief.md with the task ID, scope, acceptance criteria, constraints, and links into the project wiki. The prompt itself stayed small because the agent retrieved the detailed requirements from the shared knowledge base.

2. Engineer: implement and self-verify

The Engineer role used task-implementation.

Before coding, the agent had to read the task brief and relevant wiki pages, identify ambiguity or missing dependencies, check the proposed approach against the architecture and ADRs, Architecture Decision Records, and only then implement the change.

After implementation, it built the relevant modules, ran tests, performed a self-review, and wrote .task-report.md describing the changes and verification results. If the task affected the UI, it also had to run the mock application on an emulator or device and inspect the actual behavior instead of inferring correctness from the source code.

The mock build was a hardware-independent version of the application that replaced vendor-specific terminal services with controlled test implementations, allowing most application flows to run on a standard Android emulator.

3. Code Reviewer: independently check the implementation

A separate general-purpose agent then took the Code Reviewer role.

Its task was not to continue the implementation. It independently checked:

• compliance with the architecture and ADRs;
• potential bugs;
• missing requirements;
• unnecessary scope;
• quality and relevance of tests;
• successful compilation and test execution;
• project-specific regression and security gates.

The reviewer inspected the same isolated worktree before anything was copied back or committed.

This separation mattered because self-review and independent review answer different questions. The Engineer asks, “Did I implement what I intended?” The reviewer asks, “Was that implementation actually the right one?”

4. QA Engineer: verify the working feature

If code review passed, a third agent took the QA role and verified the feature against its acceptance criteria.

For UI-related work, ui-verification could launch the mock application, navigate through the affected flow, inspect the Android layout tree, the structured representation of the elements currently displayed on screen, and capture screenshots to confirm appearance.

The layout tree was the primary source for checking screen state; screenshots were used to confirm what the interface actually looked like.

QA also checked that existing flows and tests still worked, so verification covered both the new behavior and regressions.

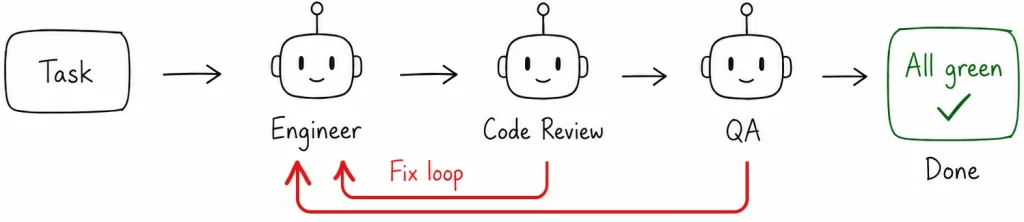

5. Any finding sends the task back through the loop

If either Code Review or QA found a problem, the findings went back to the Engineer in the same worktree.

After the fix, the task did not jump directly to done.

It had to pass Code Review again and then QA again because a fix that solves one problem can introduce another. The workflow allowed up to three unsuccessful fix cycles before stopping and returning control to the developer.

6. The loop also needed to know when to stop

This was an important part of the workflow.

Automation should not turn missing information into an invented solution.

implementation-loop stopped and handed control back to me when:

• the context window became too full;
• repeated fix cycles were no longer converging;
• a critical technical problem could not be resolved autonomously;
• an architecture, vendor, security, or business decision required human judgment.

Only after Engineer, Code Reviewer, and QA had all passed could the task move to its completed state and the execution tracker be updated.
