As a follow-up to our last blog post about unified workflow solutions, this article reveals how we tackled the challenges of HL7 integration to support scalable, real-world healthcare deployments. Our customer is a radiology center specializing in MRI and CT diagnostics. Like many healthcare providers, they depended on separate systems for scheduling, image storage, dictation, and reporting, forcing staff to constantly switch between interfaces and manually check patient information. This fragmented setup caused inefficiency and increased error risks.

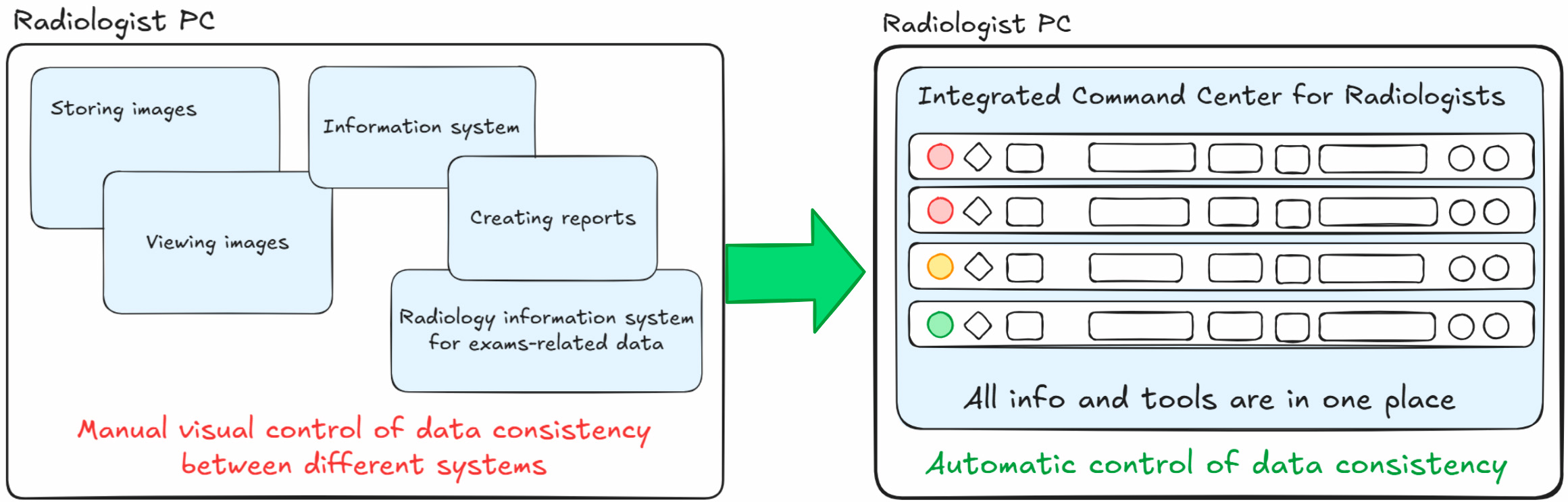

The customer set out to unify these critical systems into a single Integrated Command Center for Radiologists. Their vision was not just to improve internal operations, but to develop a flexible, commercial product that could adapt to any clinic’s unique setup.

This strategic vision presented a clear business challenge because the new solution needed to operate reliably across a wide range of clinical IT environments, with particular focus on the HL7 standard. HL7 (Health Level Seven) is an internationally recognized protocol specifically designed for sharing clinical and administrative healthcare data between diverse software systems. The challenge is that HL7 comes in multiple protocol versions, and clinics often modify HL7 message structures and field mappings to fit their own unique workflows. For the customer’s solution to succeed commercially, it had to accurately recognize and process HL7 messages regardless of protocol version or any custom modifications introduced by each clinic.

While our previous post explored the broader business and technical strategy, this article focuses on HL7 integration. We detail the real challenges of working with HL7, our approach to building a universally adaptable integration solution, and practical technical insights applicable to your own healthcare integration projects.

HL7 fundamentals and integration challenges

To grasp the depth of the integration challenge, it helps to briefly explore how HL7 works at a technical level. HL7 messages are structured collections of segments and fields that follow a predefined syntax to represent different types of clinical and administrative information.

Message structure in different HL7 versions

Clinics typically use one of several versions of HL7, each with its distinctive structure and capabilities:

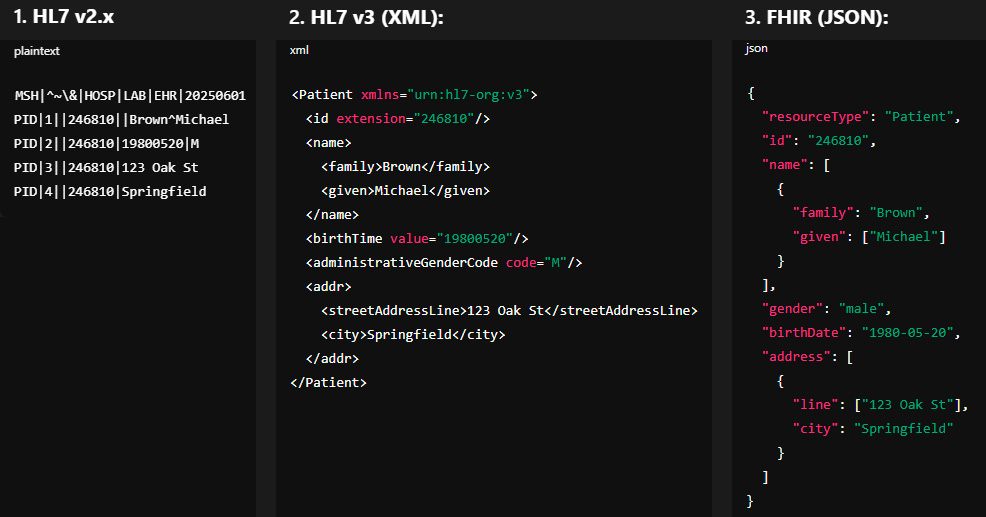

Here’s how the same message would look in the three most common versions of the HL7 protocol:

Standard vs customized HL7 messages

In theory, HL7 sets clear rules for how clinical data should be structured and exchanged. In practice, many clinics customize their HL7 messages to fit their specific workflows or legacy IT systems. This often means using unique formats for patient IDs, renaming exam types, or adding extra fields.

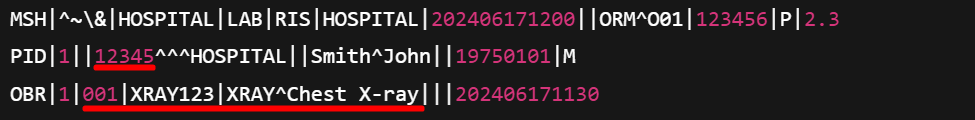

For example, a standard HL7 message for an imaging order might look like this:

  • PID-3 is the third field after PID — it shows the patient ID (here: 12345).
  • OBR-4 is the fourth field after OBR — it shows the exam code and type (here: XRAY^Chest X-ray).

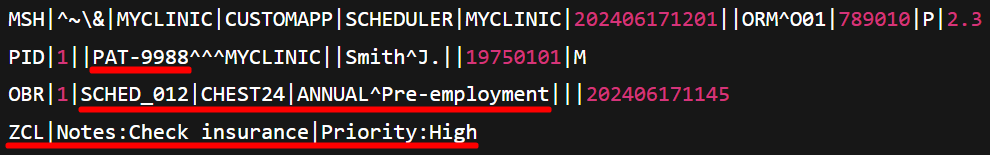

But in a real clinic, you might see a customized message like:

  • PID-3 now has a custom clinic ID (PAT-9988).
  • OBR-4 now shows clinic-specific codes and names.
  • There’s a new custom segment ZCL for internal notes and priorities.

Clinics make these changes to streamline their daily work or match old internal systems. However, these customizations create challenges for integration, especially when a solution must work with any clinic’s unique HL7 setup.

HL7 integration as a necessity for commercialization

The technical complexity around HL7 integrations had direct implications for our customer’s strategic goal of commercial scalability. If each new clinic deployment required manual adjustments to handle unique HL7 implementations, scaling their solution commercially would be impractical.

Instead, they required a robust, automated approach capable of handling multiple HL7 protocol versions and customized message formats simultaneously. This meant we needed to design an integration layer that could dynamically interpret and normalize data from diverse HL7 implementations without manual configurations.

In the following chapters, we will dive deeply into the technical details of our integration architecture, dynamic parsing methods, and data normalization strategies.

Building a flexible HL7 integration layer

 To address the complexity and variability of HL7 integrations, we built a robust and flexible HL7 processing layer.

Dynamic HL7 message parsing and mapping

This layer automates the identification, parsing, and accurate mapping of incoming HL7 messages regardless of their format, version, or customization level. All processing stages operate asynchronously and can be scaled independently to support any workload.

Click or tap the image to view it in full size

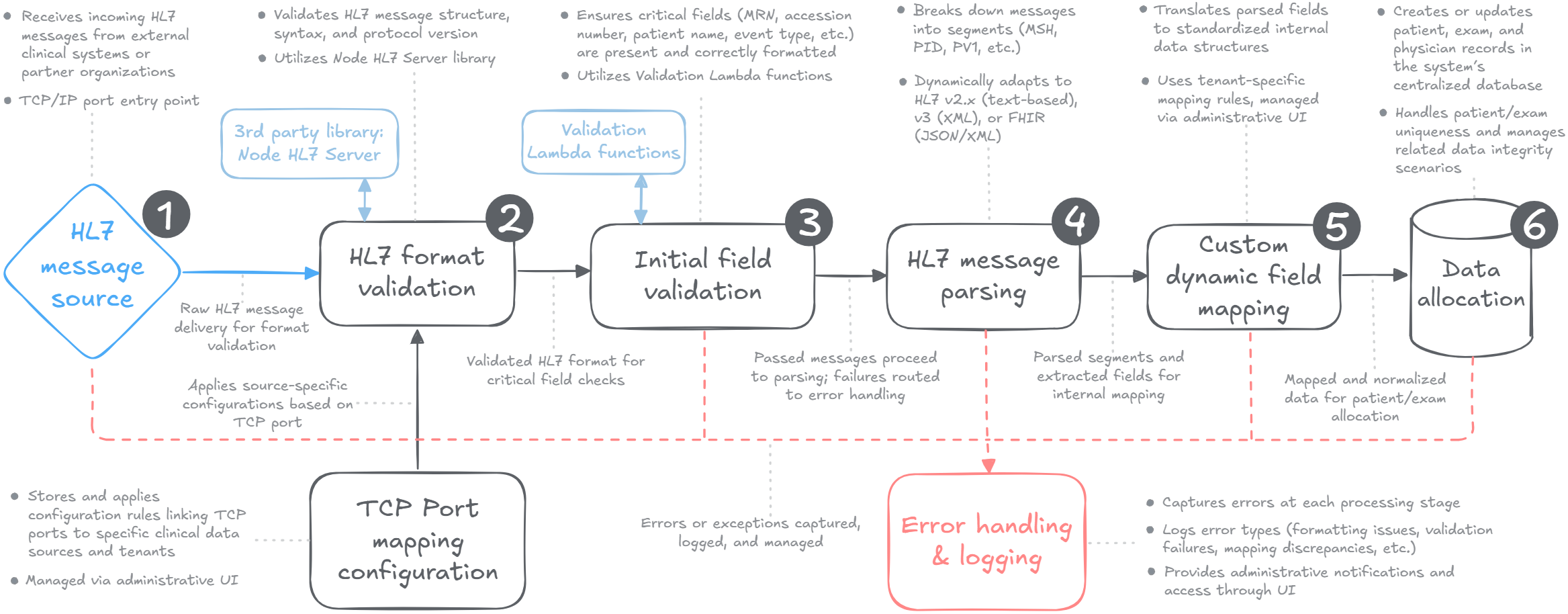

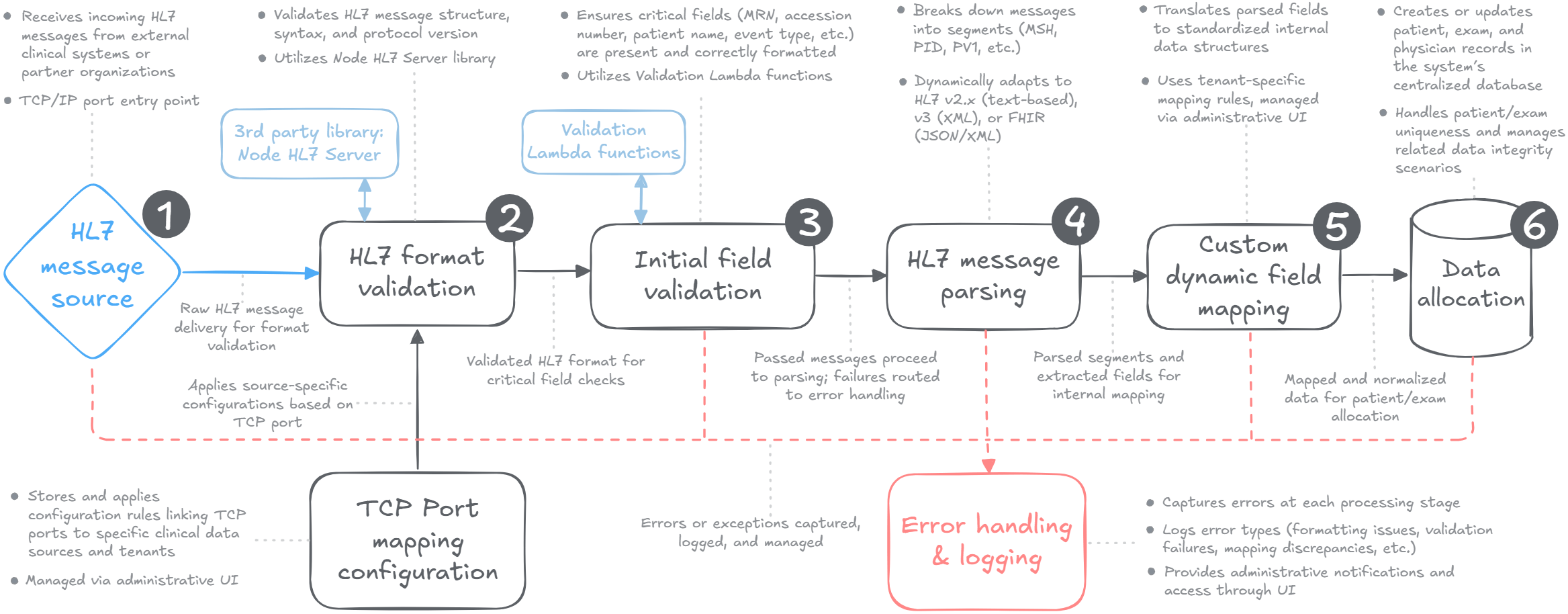

Step-by-step parsing and mapping process:

  1. Receiving HL7 messages via TCP/IP ports
    Incoming HL7 messages arrive at designated TCP/IP ports configured in our system. Each port is mapped to specific data sources or tenants using administrative configurations. This ensures accurate identification and processing of messages per clinical source.
  2. HL7 format validation and source mapping
    We employ the Node HL7 Server library to automatically detect the HL7 message format and protocol version upon receipt. This library identifies whether the incoming message adheres to HL7 v2.x (pipe-delimited text), HL7 v3 (XML), or the FHIR standard (JSON/XML). In addition, the system uses TCP Port Mapping Configuration, which stores and applies configuration rules linking each TCP port to a specific clinical data source or tenant. This mapping is managed through an administrative UI and ensures that incoming messages are processed with the correct source-specific rules. Accurate version detection and source mapping enable subsequent dynamic processing tailored for each integrated system.
  3. Initial field validation
    Upon successful format validation, Lambda functions perform initial field checks. These functions validate critical fields within each HL7 message, ensuring mandatory information such as patient identifiers, medical record numbers (MRN), accession numbers, patient names, message types, and trigger events are present and correctly formatted. Invalid messages are logged and routed to error handling.
  4. HL7 message parsing
    At this step, the message is broken down into standard HL7 segments (like MSH, PID, PV1, etc.) and all required fields are extracted, regardless of the HL7 version or customizations used by the source. This step supports dynamic adaptation to the different syntaxes (text, XML, JSON).
  5. Custom dynamic field mapping per message source
    Each incoming message source often has unique customizations. Our solution dynamically maps HL7 message fields into our internal standardized data structures using configurable mapping rules defined for each message source. For example, some sources may place patient names or IDs in non-standard fields due to legacy systems or clinic-specific workflows. Our mapping engine automatically reads the appropriate configuration and accurately extracts these fields.
  6. Data allocation
    After successful mapping, normalized data is allocated into the system’s centralized database, updating or creating records for patients, physicians, and exams. This allocation process manages uniqueness and consistency, ensuring accurate data representation.

Handling unknown or newly encountered HL7 message structures:
When encountering a previously unseen message structure or an error at any step, the system automatically logs detailed information about the event. Administrators receive notifications and can access comprehensive logs through an intuitive configuration and management UI, enabling rapid troubleshooting and easy rule configuration without coding.

Configuration and management UI

Recognizing that technical personnel at clinics may not always have programming backgrounds, we designed intuitive, powerful administrative interfaces. These enable easy HL7 integration management without direct code intervention.

Administrative configuration interface

  • HL7 interface and port configuration screens: Clearly defined interfaces allow administrators to specify TCP ports, source identifiers, and other communication parameters easily.
  • Mapping configurations: Administrators visually configure HL7 field mappings through intuitive UI elements, assigning custom message fields to standardized internal data structures. For example, mapping the patient’s last name from “PID-5.1” or “OBR-4.1” fields based on clinic-specific setups.
  • Message monitoring and log management screens: Real-time HL7 message monitoring screens display comprehensive logs detailing message statuses, timestamps, patient attributes, and processing outcomes. This ensures quick identification and troubleshooting of integration issues.

Ease of administration without coding

The command center interface supports straightforward management of complex mappings. Administrators adjust message mappings, normalization rules, and interface configurations directly through the UI, significantly simplifying onboarding new clinical systems and accommodating custom workflows.

Results and real-world impact

Our flexible HL7 integration solution delivered clear and measurable benefits for our customer:

  • Seamless integration across all clinical systems
    Our HL7 integration layer enabled seamless, real-time data exchange across clinical systems and serves as the foundation for the unified workflow described in our separate post about the Integrated Command Center for Radiologists.
  • Automated workflow and significant reduction in manual errors
    The automated handling of diverse HL7 messages and dynamic data normalization drastically reduced the manual reconciliation tasks, minimizing errors, enhancing data integrity, and freeing clinical staff to focus more on patient care rather than administrative chores.
  • Scalability to new clinics with minimal onboarding effort
    Thanks to our dynamic mapping engine and intuitive administrative interface, our customer can quickly onboard new clinics, handling each clinic’s unique HL7 implementation without extensive development or coding effort. This capability opened a path for rapid expansion and commercial scalability of their integrated solution.
